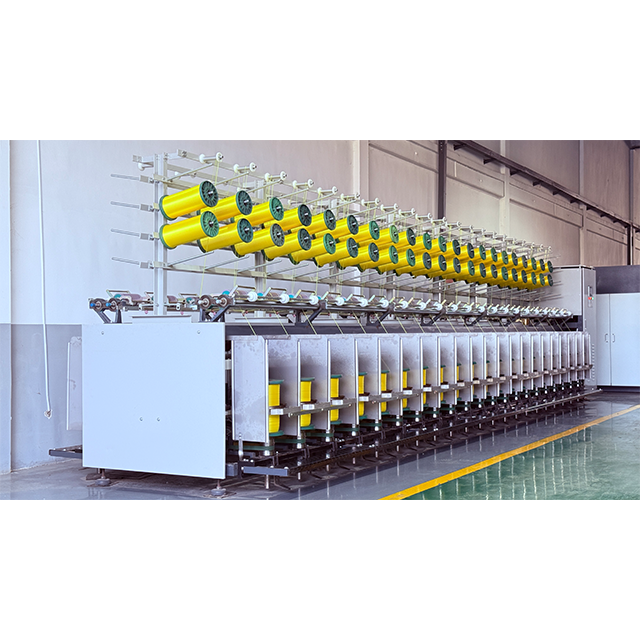

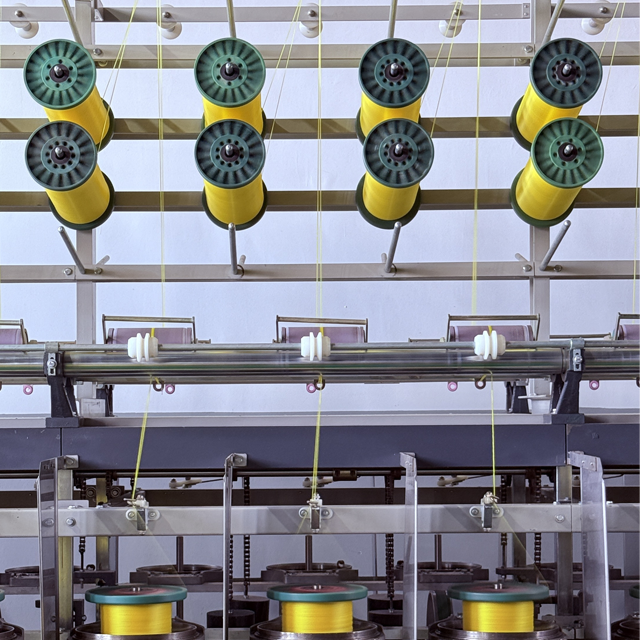

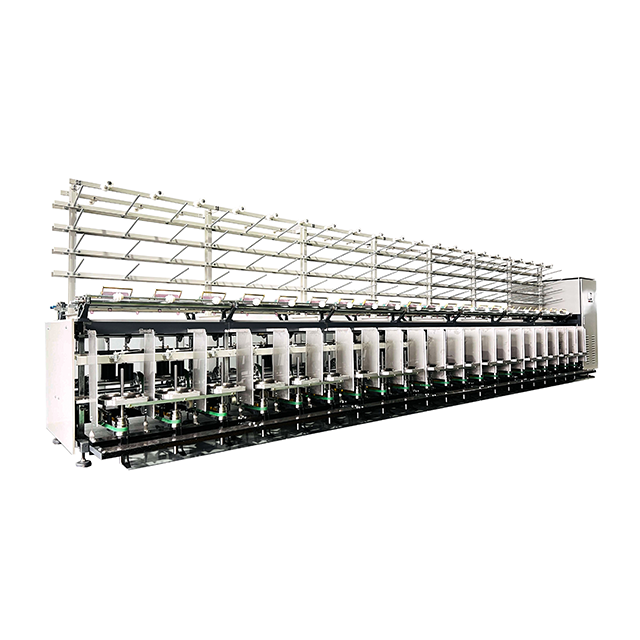

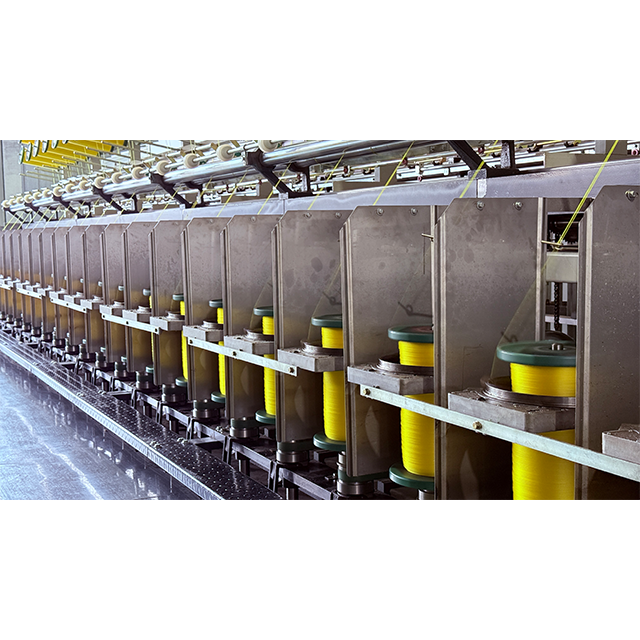

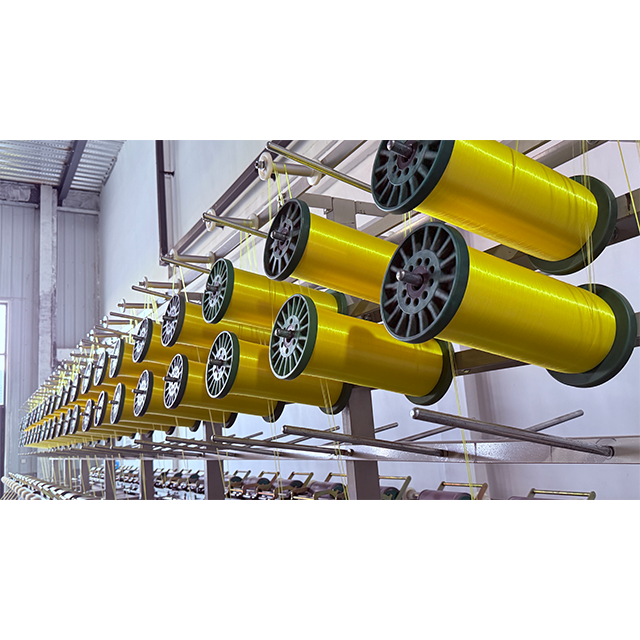

HDRT-722T Ring Twister

CNRM Ring Twister is a high efficiency and output machine for yarn fiber twister and re-twister. It has the mechanism of twisting direction changing, safe device and lifting mechanism with planetary direction exchanging. It is suitable for primary twister and re- twisting of all kinds of HDPE twine, PP twine, PET twine, nylon twine, cotton twine , polyester twine, raffia twine and twisted ropes in small size.
1.For fiber, yarn, twine, thread, string, rope first twister and re-twister.
2. Size: 0.5mm-6mm
3. Working mission: for twisting single yarn, two ply yarn, three ply yarn, multi ply.
4. For twister fiber, yarn, thread, string, twine, rope.
5. For first-twisting, re-twister , doubling, twister.
It is for twisting many ply yarn into one ply. It is good for different size yarn.
The product has wide application scopes, modern design, big take up amount.
Availability:
Quantity:
Inquire Add to Basket

1.Wide applied and big winding capacity and strong suitability to materials etc.

2.It takes small space, simple structure, easy to operate and maintain.

3. High efficiency and output machine for twisting and stranding with multi spindles.

4. Custom technical support-Strong technical team and full experience for costuming the machine as client's production request.

5. Adopt count storage devices, and accurately record the output of the machine, make production more easy and efficient.

6. You can add PLC control to operate the machine easily.

7. Easy technology adjust device, make your production more easy and fast.

8. Twisting uniform, Good stability. Strong stability, low energy consumption.

Model

HDRT-722T

Quantity of spindle

8 spindles/group. Max.72 spindles

Lifting movement of traveler ring

300mm

Speed of spindle

1800-2800rpm

Dia of roller

57mm

Distance of spindle

280mm

Dia of traveler ring

124mm

Twisting direction

Z or s

Suitable scope

21 counts 5 strands-180 strands yarn850D~15000D fiber

36 tex 21-70 strands twisting or twine

Bobbin dimension(ODxIDxH1xH2)

Φ175xΦ22.5x305x345mm

It is suitable for primary twister and re- twisting of all kinds of HDPE twine, PP twine, PET twine, nylon twine, cotton twine , polyester twine, raffia twine and twisted ropes in small size.

CNRM will provide the operation manual and relevant videos for the machine and test machines before shipment. Meanwhile, after the CNRM HDRT-Ring Twister arrives at the customer's factory, CNRM overseas after-sales engineers will install and have a test run the machine according to the customer's needs, and carry out centralized for local employees, focusing on guiding technical operations and related factory safety precautions.

1.How many square meters of factory space is needed for the entire production line? How many workers are needed to run the machines?

Answer: CNRM HDRT-Ring twister Machine needs about 200-300 square meters of factory to accommodate the machines. Initially, about 2-3 workers are needed to coordinate and cooperate when starting the production line. Later, when the machine is in normal production, 1-2 people can do it.

2.What is the payment terms and how to make payment?

Answer: CNRM can accept 50% advance payment from the customer, with the balance to be paid before shipment. Typically, bank T/T, L/C at sight are all acceptable.

3.How long times of finishing the entire production line? Can the machine be customized according to the requirements?

Answer: CNRM HDRT-Ring twister line usually takes about 45 days to complete. CNRM will also provide detailed and precise machine suggestions according to the customer's different regional, climate, and market demand! Of course, if the customer has other special customization requirements, the CNRM R&D design and production team will provide a complete set of customization solutions for the customer to choose from.
