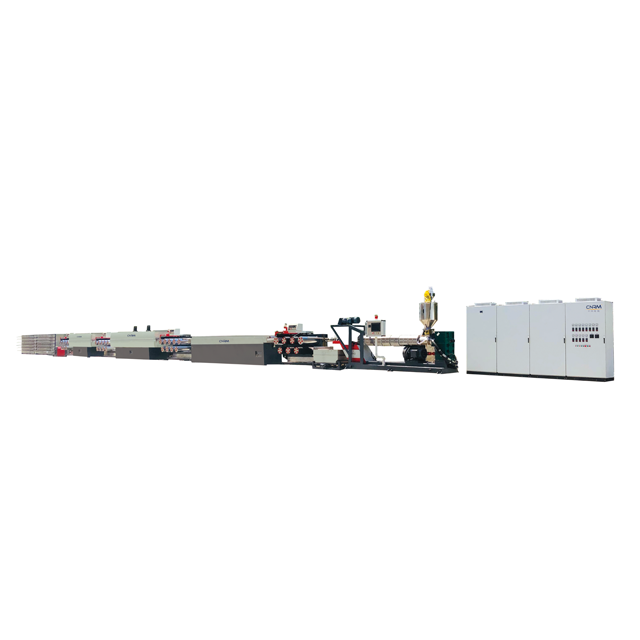

1. CNRM PE fishing net rope and cable monofilament extruder is a complete set of mechanical equipment which integrates plastic raw material thr heating, melting, extrusion, stretching, shaping, and winding.
2. CNRM PE fishing net rope and cable monofilament extruder cabinet integrates control of related equipment units, matches temperature control (220°C - 240°C), and maintains a stable extrusion stretching ratio of 8-10 times. The overall stretching production speed can reach up 150m/min.
3. CNRM PE fishing net rope and cable monofilament extruder uses high-quality domestic chint electrical components; the main motor is from the well-known Germany brand Siemens; the frequency converter uses domestic famous brands such Inv and Watson.
4. While meeting the basic extrusion strength requirements of the customer's factory, CNRM PE fishing net rope and cable monofilament extruder matches optional equipment to meet the production needs of high-end customers for high tensile strength yarns. Optional auxiliary equipment includes:
A. HMI + PLC system
B. Metering pump
C. Automatic screen changer
D. Gravimetric dosing system
1. CNRM PE fishing net rope and cable monofilament extruder is a complete set of mechanical equipment which integrates plastic raw material thr heating, melting, extrusion, stretching, shaping, and winding.
2. CNRM PE fishing net rope and cable monofilament extruder cabinet integrates control of related equipment units, matches temperature control (220°C - 240°C), and maintains a stable extrusion stretching ratio of 8-10 times. The overall stretching production speed can reach up 150m/min.
3. CNRM PE fishing net rope and cable monofilament extruder uses high-quality domestic chint electrical components; the main motor is from the well-known Germany brand Siemens; the frequency converter uses domestic famous brands such Inv and Watson.
4. While meeting the basic extrusion strength requirements of the customer's factory, CNRM PE fishing net rope and cable monofilament extruder matches optional equipment to meet the production needs of high-end customers for high tensile strength yarns. Optional auxiliary equipment includes:
A. HMI + PLC system
B. Metering pump
C. Automatic screen changer
D. Gravimetric dosing system
Item | HDYSJ-70 | HDYSJ-80 | HDYSJ-90 |
|---|---|---|---|
Dia of Fiber | 0.13mm-0.30mm | 0.13mm-0.30mm | 0.15mm-0.3mm |
Dia of Screw | 70mm | 80mm | 90mm |
Ratio of L/D | 30 | 33 | 33 |
Rotation Speed of Screw | 20-90r/min | 20-90r/min | 20-90r/min |
Drawing Ratio | 4-10 | 4-10 | 4-10 |
Heating Mode | Electric heating | Electric heating | Electric heating |
Cooling Mode | Water Cooling | Water Cooling | Water Cooling |
Power Consumption | 100kw/65kw | 130kw/80kw | 150kw/100kw |
Max Outputcapacity | 1400kg/24h | 2000kg/24h | 3000kg/24h |
Machine Dimension(L*W*H) | 20m*3m*2.5m | 23m*3m*2.5m | 27m*3m*2.5m |
Machine Weight | 9000kg | 12000kg | 15000kg |
Item | HDYSJ-70 | HDYSJ-80 | HDYSJ-90 |
|---|---|---|---|
Dia of Fiber | 0.13mm-0.30mm | 0.13mm-0.30mm | 0.15mm-0.3mm |
Dia of Screw | 70mm | 80mm | 90mm |
Ratio of L/D | 30 | 33 | 33 |
Rotation Speed of Screw | 20-90r/min | 20-90r/min | 20-90r/min |
Drawing Ratio | 4-10 | 4-10 | 4-10 |
Heating Mode | Electric heating | Electric heating | Electric heating |
Cooling Mode | Water Cooling | Water Cooling | Water Cooling |
Power Consumption | 100kw/65kw | 130kw/80kw | 150kw/100kw |
Max Outputcapacity | 1400kg/24h | 2000kg/24h | 3000kg/24h |
Machine Dimension(L*W*H) | 20m*3m*2.5m | 23m*3m*2.5m | 27m*3m*2.5m |
Machine Weight | 9000kg | 12000kg | 15000kg |
CNRM Monofilament extrusion line will provide the operation manual and relevant videos for the machine. Meanwhile, after the CNRM PE fishing net twine and monofilament extruder line arrives at the customer's factory, CNRM overseas after-sales engineers will install and have a test run the machine according to the customer's needs, and carry out centralized for local employees, focusing on guiding technical operations and related factory safety precautions.
CNRM Monofilament extrusion line will provide the operation manual and relevant videos for the machine. Meanwhile, after the CNRM PE fishing net twine and monofilament extruder line arrives at the customer's factory, CNRM overseas after-sales engineers will install and have a test run the machine according to the customer's needs, and carry out centralized for local employees, focusing on guiding technical operations and related factory safety precautions.
1.How many square meters of factory space is needed for the entire production line? How many workers are needed to run the machines?
CNRM PE fishing net rope and cable monofilament extrusion line needs about 500-1000 square meters of factory to accommodate the machines. Initially, about 2-3 workers are needed to coordinate and cooperate when starting the production line. Later, when the machine is in normal production, 1-2 people can do it.
2.What is the payment terms and how to make payment?
CNRM can accept 50% advance payment from the customer, with the balance to be paid before shipment. Typically, bank T/T, L/C at sight are all acceptable.
3.How Long times of finishing the entire production line? Can the machine be customized according to the requirements?
CNRM PE fishing net rope and cable monofilament extrusion line usually takes about 90 days to complete the whole extrusion line. CNRM will also provide detailed and precise machine suggestions according to the customer's different regional, climate, and market demand! Of course, if the customer has other special customization requirements, the CNRM R&D design and production team will provide a complete set of customization solutions for the customer to choose from.
1.How many square meters of factory space is needed for the entire production line? How many workers are needed to run the machines?
CNRM PE fishing net rope and cable monofilament extrusion line needs about 500-1000 square meters of factory to accommodate the machines. Initially, about 2-3 workers are needed to coordinate and cooperate when starting the production line. Later, when the machine is in normal production, 1-2 people can do it.
2.What is the payment terms and how to make payment?
CNRM can accept 50% advance payment from the customer, with the balance to be paid before shipment. Typically, bank T/T, L/C at sight are all acceptable.
3.How Long times of finishing the entire production line? Can the machine be customized according to the requirements?
CNRM PE fishing net rope and cable monofilament extrusion line usually takes about 90 days to complete the whole extrusion line. CNRM will also provide detailed and precise machine suggestions according to the customer's different regional, climate, and market demand! Of course, if the customer has other special customization requirements, the CNRM R&D design and production team will provide a complete set of customization solutions for the customer to choose from.
