PP Danline Extruder

CNRM PP dan-line or poly-steel extrusion machine is a new type of yarn extrusion machinery specially designed for the production of raw material dan-line or poly-steel for agriculture, deep-sea fishing, and shallow beach fishing industry. It provides high-quality equipment manufacturers for terminal factory customers for high-strength flat yarn.
Availability:
Quantity:

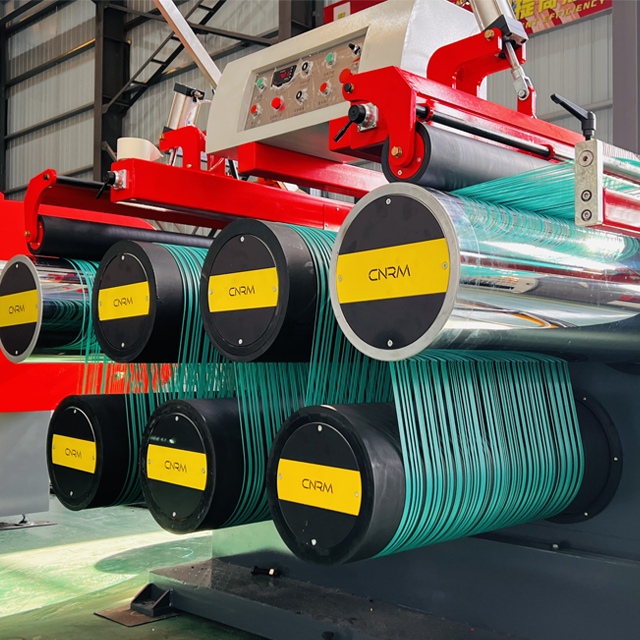

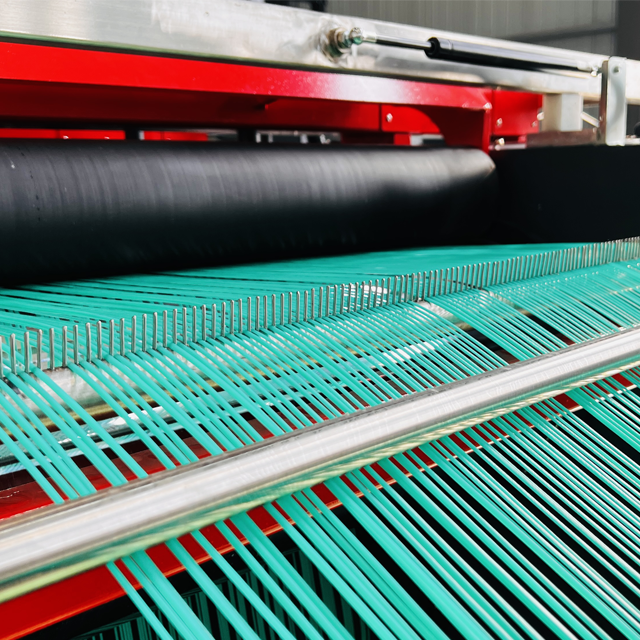

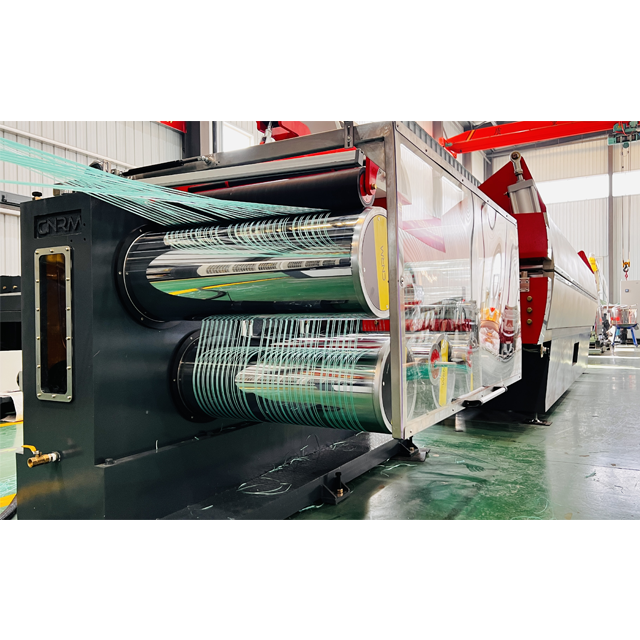

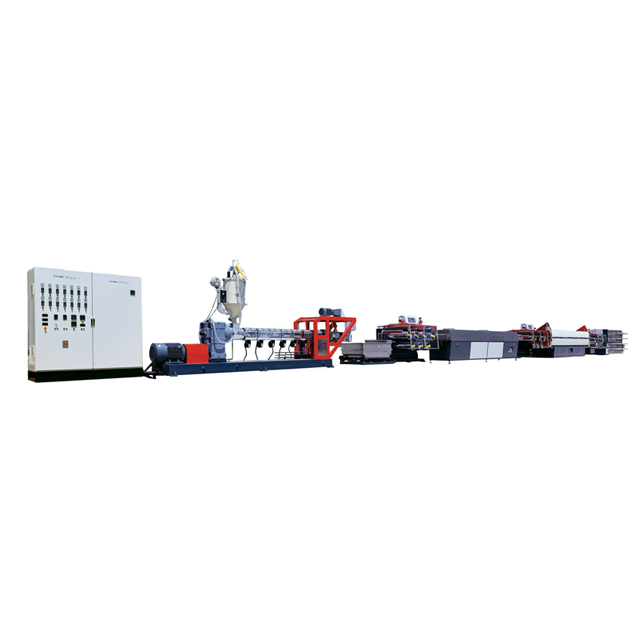

1. CNRM PP Dan-line or Poly-steel extrusion machine line is a complete set of machinery equipment that integrates the heating, melting, multi-nozzle spinning plate, drawing, secondary drawing, and winding of plastic PP raw material particles.

2. CNRM PP dan-line or Poly-steel extrusion line integrates control of related equipment units in the electrical control cabinet, matches the temperature control (205℃-235℃), and maintains a stable spinning stretching ratio of 8-15 times. The overall stretching production speed can reach 120m/min.

3. CNRM PP dan-line or poly-steel filament extrusion line consist of famous domestic chint electrical components; the main motor is from the well-known German brand Siemens; the frequency converter uses domestic good brands such Inv and Watson.

4. While meeting the basic spinning strength requirements of the customer's factory, the CNRM PP Dan-line or poly-steel filament extrusion line matches equipment to meet the production needs of high-end customers for high-tensile strength fibers. The following are optional auxiliary equipment:

J. HMI+PLC

K. Metering pump

L. Automatic screen changer

M. Gravimetric dosing system

N. Ring winder

Item

HDYBSJ-80

HDBSJ-90

HDBSJ-90

Dia of Fiber

1000D-3000D

1000D-3000D

1000D-3000D

Dia of Screw

80mm

90mm

100mm

Ratio of L/D

33

33

33

Spinning Holes

64

96

112

Rotation Speed of Screw

20-90r/min

20-90r/min

20-90r/min

Drawing Ratio

8-15

8-15

8-15

Heating Mode

Electric heating

Electric heating

Electric heating

Cooling Mode

Water Cooling

Water Cooling

Water Cooling

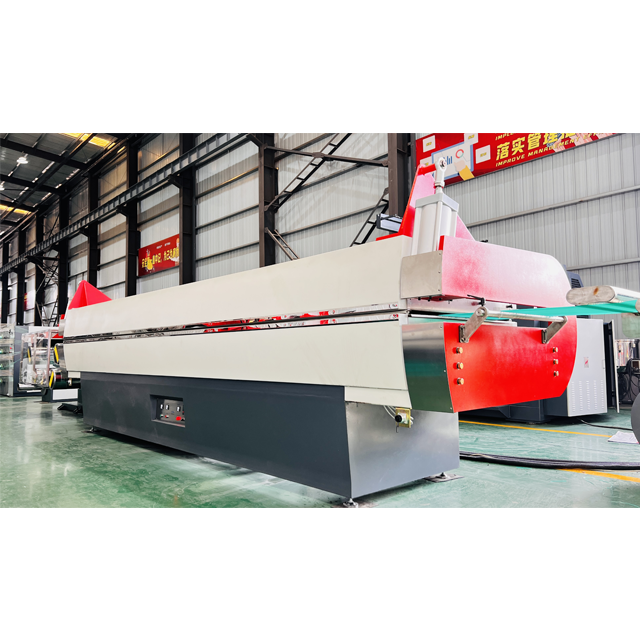

Hot Oven

6000*600*200mm

6000*850*200mm

6000*1050*200mm

Power Consumption

150kw/50kw

160kw/50kw

200kw/70kw

Max Outputcapacity

2500kg/24h

3500kg/24h

4500kg/24h

Machine Dimension(L*W*H)

23m*3m*2.5m

25m*3m*2.5m

27m*3m*2.5m

Machine Weight

12000kg

14000kg

16000kg

CNRM will provide machine operation manuals and related videos. At the same time, after the CNRM PP dan-line or poly-steel flat extrusion production line arrives at the customer's factory, CNRM overseas after-sales engineers will install and test run the machine according to the customer's needs, and carry out centralized training for employees, focusing on guiding technical operations and related factory safety precautions.

1.How many square meters of factory space is needed for the entire production line? How many workers are needed to operate the machines?

CNRM PP dan-line or Poly-steel filament extrusion production line needs about 700-1200 square meters of factory space to accommodate machines. Initially, about 2-4 workers are needed to coordinate and cooperate with each other when starting the filament production. Later, when the machine is in normal filament stage,1-2 person can do it.

2.What is the payment terms ? How to make payment?

50% payments in advance and the balance should be paid before delivery. Usually, bank T/T, L/C at sight is available.

3.How long time will be finished by all the entire production line? Can machines be customized according to requirements?

CNRM PP dan-line or poly-steel extrusion production line needs about 90 days . Overseas after-sales engineers will install and test run for about 7-10 days according to the quantities of machines. CNRM will also provide detailed and accurate machine suggestions according to the different voltage, climate, and market demand in different regions of the customer! Of course, if the customer has other special customization requirements, the CNRM R&D design and production team will provide a complete set of machine customization solutions for the customer to choose.
