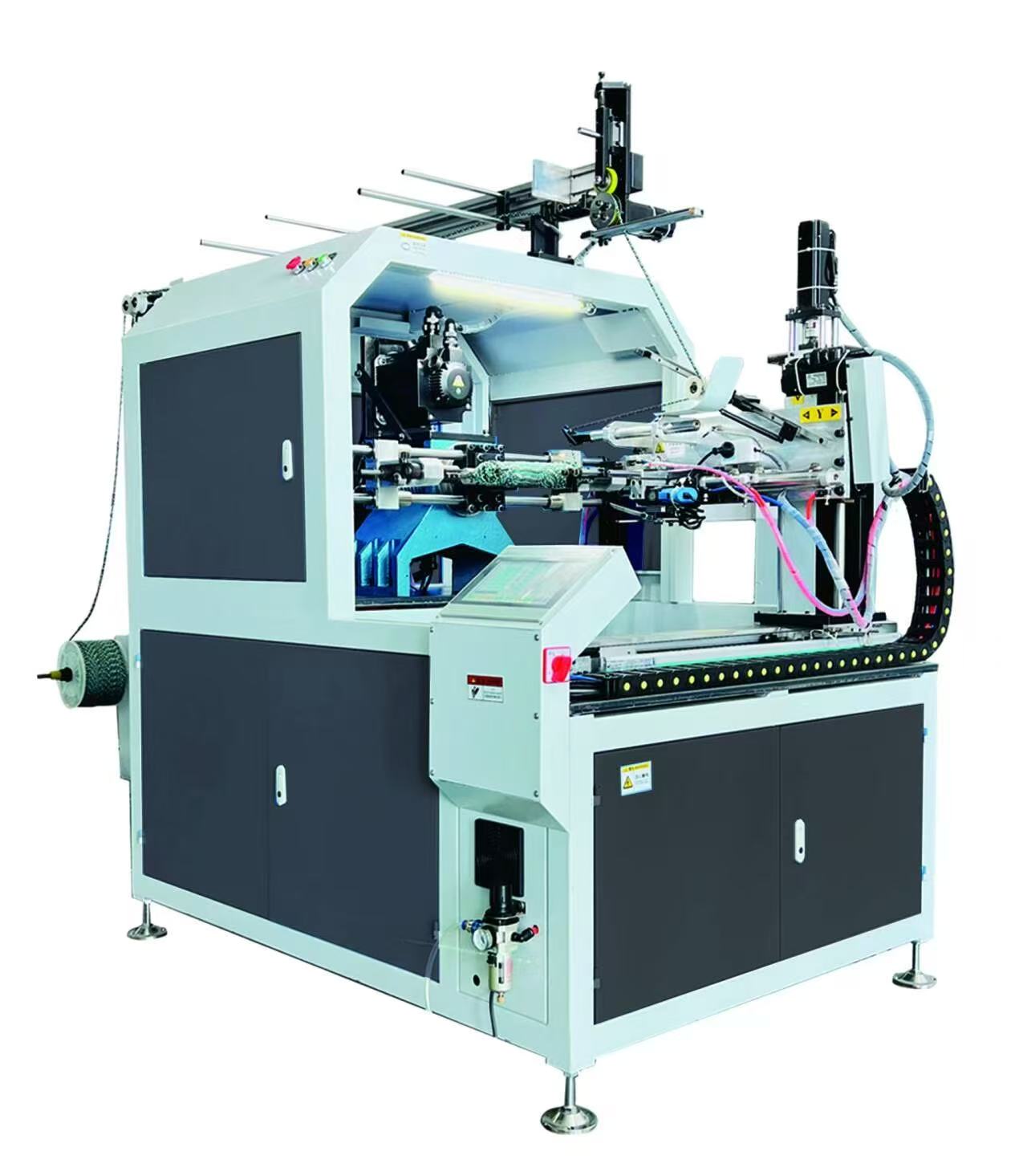

As a leading industrial manufacturer and global supplier, we present the HDAHW High-Speed Automatic Hank Winder for Yarn Rewinding. Engineered specifically for large-scale production facilities, this robust machinery transforms raw yarn and rope processing with seamless efficiency. Designed to meet the rigorous demands of professional procurement managers, it offers unparalleled operational stability and precision.
Engineered for high-volume textile and advanced packaging manufacturing.
Integrates advanced servo-driven precision for flawless material handling.
Features a streamlined footprint to optimize existing factory layouts.
Step onto the factory floor, and the rhythmic, quiet hum of the HDAHW High-Speed Automatic Hank Winder immediately signals premium industrial craftsmanship. Built with heavy-duty metallic frames coated in industrial-grade, corrosion-resistant finishes, this machinery feels incredibly solid to the touch and is engineered to withstand the relentless pace of continuous production shifts. It eliminates the chaotic clatter often associated with legacy winding equipment, replacing it with the smooth, synchronized motion of multi-axis linkage systems. This is not just a machine; it is a comprehensive mechanical solution designed to eradicate bottlenecks in your yarn and rope processing lines.
Every internal component is meticulously machined to ensure that as the yarn glides through the tensioners, it forms perfectly uniform, tight hanks without any fraying or structural degradation. By maintaining exact tension and speed, the winder prevents material waste and ensures that your final product presents flawlessly to your downstream clients. The sleek, intuitive touch-screen interface glows with real-time operational data, putting absolute control directly at the operator's fingertips. This level of precision transforms raw materials into impeccably wound hanks, elevating your production quality, drastically reducing costly downtime, and ultimately driving a stronger return on your capital equipment investment.
Model | HDAHW |
|---|---|
Scope | 2mm-8mm |
Hank Size | 200-450mm length |
Machine Size | 1600x1270x2040mm |
Pressure | 0.5-0.7Mpa |
Machine Weight | 800kg |
Upgrading your facility with the HDAHW High-Speed Automatic Hank Winder means investing in long-term mechanical reliability and superior output quality. This equipment is meticulously designed to address the most pressing challenges in modern textile and rope manufacturing, ensuring your production line operates at peak performance with minimal manual interruptions.
Seamless Parameter Adjustments: Operators can instantly modify winding length, speed, and tension through a highly responsive touch interface, adapting to different material runs in mere seconds.
Flawless Material Handling: The precision-engineered guides handle delicate yarns and rugged ropes with equal finesse, preserving the structural integrity and tactile feel of the fibers.
Centralized Management Readiness: Built-in frequency converters allow the machinery to integrate smoothly into broader computer-managed factory networks for synchronized, data-driven operations.
Robust Structural Integrity: Weighing in at a solid 800kg, the heavy-duty chassis absorbs operational vibrations, ensuring a whisper-quiet production environment and extending the lifespan of moving parts.
Modern manufacturing demands smart, responsive solutions that reduce human error and accelerate setup times. The HDAHW winder is driven by an advanced Programmable Logic Controller (PLC) paired with a crystal-clear, tactile touch-screen interface. This intelligent core empowers your floor managers to execute complex winding profiles with a few simple taps, transforming a traditionally labor-intensive process into a highly streamlined, automated workflow.
Intuitive Operator Interface: The high-contrast touch screen provides immediate visual feedback, making it exceptionally easy for new operators to master the equipment without extensive, costly training sessions.
Computer System Integration: Designed to communicate seamlessly with your facility's central management systems, allowing for remote monitoring and precise, data-driven production planning.
Automated Diagnostics: The intelligent control unit continuously monitors internal mechanical parameters, alerting maintenance teams to potential issues long before they cause costly line stoppages.
Precision Memory Storage: Save specific parameter recipes for recurring client orders, ensuring absolute consistency in tension and length across different production batches month after month.
Throughput and accuracy are the lifeblood of any profitable manufacturing operation. By utilizing top-tier servo motors and a sophisticated multi-axis linkage system, this hank winder delivers relentless speed without sacrificing a single millimeter of accuracy. The integration of a premium frequency converter enables stepless, flexible speed regulation, allowing your facility to scale output dynamically based on immediate production demands.
High-Speed Stability: Even at maximum velocity, the multi-axis linkage ensures the winding arm moves with fluid precision, eliminating jerky motions that cause uneven or loose hanks.
Dynamic Speed Regulation: The advanced frequency converter allows for smooth acceleration and deceleration, protecting the internal mechanical components from sudden stress and premature wear.
Maximized Factory Output: By maintaining continuous, high-speed operation with exact dimensional accuracy, your facility can fulfill large-volume contracts well ahead of tight delivery deadlines.
Vibration Dampening Technology: The meticulously balanced drive system operates with a reassuringly low acoustic footprint, reflecting the high-precision machining of its internal gears and bearings.
The visual appeal and structural tightness of a hank directly impact its market value and usability for your clients. This machine guarantees that every single hank produced meets strict quality assurance standards. By offering granular control over tension and winding speed, it ensures uniform, tightly packed hanks that look professional and are easy for downstream users to process. The optional automatic splicing feature acts as a vigilant guardian against material defects.
Uniform Hank Density: Advanced tensioning algorithms prevent loose loops and sagging, resulting in dense, perfectly shaped hanks that stack, store, and package beautifully.
Automatic Splicing Technology: In the event of a yarn break, the machine can automatically detect, twist, and seamlessly connect the ends, virtually eliminating the need for manual tying and reducing labor dependency.
Defect Reduction: By minimizing human handling during the winding process, the risk of introducing dirt, oil, or inconsistent knots into the final product is drastically reduced.
Consistent Output Quality: Whether processing a delicate 2mm textile yarn or an 8mm robust industrial rope, the formation remains impeccably consistent from the first hank of the shift to the very last.
No two production facilities are exactly alike, which is why adaptability is engineered into the very DNA of this winder. It is a highly versatile asset, widely deployed across the textiles, advanced packaging, and heavy-duty rope-making sectors. Backed by a dedicated Research & Development team, the machinery can be deeply customized to align perfectly with your specific regional climate challenges, unique market demands, and specialized processing techniques.
Broad Material Compatibility: Expertly handles a wide spectrum of materials, smoothly transitioning from fine textile yarns to rugged, industrial-grade ropes within the designated 2mm to 8mm scope.
Climate-Resilient Engineering: Internal components and enclosures can be tailored to withstand high-humidity tropical environments or dry, dust-prone regions, ensuring uninterrupted global operation.
Tailored Spindle Configurations: The physical layout and spindle quantity can be modified to match your exact production volume requirements and factory floor spatial constraints.
Bespoke R&D Solutions: Our engineering team collaborates directly with your technical staff to develop custom mechanical or software modifications for highly proprietary manufacturing processes.
Maximizing the financial return on every square meter of your factory floor is crucial for maintaining competitive operational margins. The HDAHW Hank Winder features an incredibly compact, vertical-focused architecture (1600x1270x2040mm) that delivers massive output without devouring premium industrial real estate. Furthermore, its highly automated nature drastically slashes the ongoing labor expenditures required to keep the production line moving efficiently.
Optimized Factory Footprint: An entire, fully functional production line requires only about 100 square meters of space, freeing up valuable room for additional revenue-generating equipment.
Drastic Labor Reduction: While initial startup coordination requires 2-3 workers, normal, continuous production can be effortlessly managed and monitored by just 1-2 operators.
Energy Efficient Operation: The integration of modern servo drives and intelligent frequency converters ensures that power consumption is strictly optimized, lowering monthly utility overheads.
Low Maintenance Overhead: Built with premium, wear-resistant industrial components, the machine demands fewer replacement parts and less frequent servicing, keeping maintenance budgets strictly controlled.
Acquiring heavy industrial machinery is a significant capital expenditure, and we provide the comprehensive support necessary to secure your investment. From the initial technical consultation to the final commissioning on your factory floor, our streamlined procurement process is designed to eliminate risk. We offer transparent, flexible commercial terms and rapid manufacturing turnarounds to ensure your new line is operational exactly when you need it.
Rapid Deployment: With a standard production lead time of approximately 30 days, you can aggressively accelerate your capacity expansion plans without prolonged, frustrating waiting periods.
Flexible Financial Terms: We accommodate standard international procurement practices, accepting a 50% advance payment with the balance due before shipment via secure T/T or L/C at sight.
Expert Consultation: Our technical advisors provide precise machine selection guidance based on deep analyses of your specific operational goals, regional climate, and market demands.
Lifecycle Partnership: Beyond the initial acquisition, we supply comprehensive operational guides and responsive technical support to ensure your machinery performs flawlessly for decades.
Selecting the right equipment manufacturing partner is as critical as the machinery itself. We stand at the forefront of industrial winding technology, driven by an uncompromising commitment to engineering excellence and client success. Our manufacturing facilities utilize cutting-edge fabrication techniques to ensure every winder that leaves our floor is a masterpiece of industrial reliability and precision.
Proven Global Track Record: Our machinery powers some of the most efficient textile and packaging plants worldwide, delivering consistent, profitable results in demanding, high-volume environments.
Uncompromising Quality Assurance: Every unit undergoes rigorous stress testing and precision calibration before it is approved for international shipping and deployment.
Direct Manufacturer Advantage: By sourcing directly from the factory floor, you eliminate intermediary markups, securing premium technology at a highly competitive investment level.
Dedicated Innovation: We continuously reinvest in our R&D capabilities, ensuring our clients always have access to the latest advancements in automation and material handling technology.
Review these common technical and operational inquiries to better understand how the HDAHW Hank Winder seamlessly integrates into your existing production environment.
What are the specific electrical power requirements for installing this machinery?
The equipment is designed to operate on standard industrial power supplies, typically 380V/50Hz. However, the electrical configuration can be fully customized by our engineering team to match the local grid specifications of your specific facility without compromising performance.
How does the automatic splicing function handle different thicknesses of yarn?
The optional automatic splicing unit utilizes highly sensitive optical sensors and adjustable mechanical twisters. It can be precisely calibrated via the PLC interface to apply the exact amount of twisting force required for materials ranging from delicate 2mm yarns to robust 8mm ropes, ensuring a seamless connection without bulky knots.
What is the recommended maintenance schedule to ensure optimal operational stability?
For continuous shift operations, we recommend a basic visual inspection and clearing of lint or dust from the tensioners daily. The servo motors and multi-axis linkage systems are largely maintenance-free, requiring only standard industrial lubrication and alignment checks periodically to maintain peak acoustic and mechanical performance.
Can the PLC system be integrated with our existing factory management software?
Yes, the advanced PLC control system is equipped with standard industrial communication protocols. This allows it to interface seamlessly with most modern computer management systems, enabling real-time tracking of production metrics, winding speeds, and total output volumes from a centralized control room.
If we require a custom spindle quantity to match our existing line, what is the process?
Customizing the spindle configuration is a standard procedure for our R&D team. During the initial consultation, our engineers will analyze your target throughput and factory floor dimensions. We will then design a bespoke layout, ensuring the customized winder is manufactured and delivered fully optimized for your specific capacity needs within an efficient timeframe.
