The Intelligent Rope Making Machine D Series is our flagship high-speed equipment. It is engineered for continuous, high-efficiency production of 3-strand and 4-strand laid ropes. Operating as a combined strander and layer, this advanced machine completes the process in one synchronized operation. Integrating multiple stages into a single unit significantly reduces labor costs. It also maximizes your total daily factory output.
This versatile machine processes various synthetic and natural materials. Compatible options include PP monofilament, danline, raffia yarn, nylon, polyester, and natural fibers. It supports industries like marine transport, commercial fishing, agriculture, and industrial haulage. The series delivers the flexibility needed for diverse market demands. Learn more about our rope machinery manufacturing capabilities.
Our Intelligent Rope Making Machine D Series features state-of-the-art PLC architecture. The intuitive HMI touchscreen interface modernizes commercial rope manufacturing. By digitizing the control system, we eliminate the need for physical change gears. Operators can easily adjust crucial parameters electronically. Lay length, pre-twist factors, and rotational speeds are precisely managed from the central panel.
The system also integrates smart sensors to optimize material use and protect machinery. These sensors monitor yarn tension and detect fiber breakages in real-time. Automatic shutdowns trigger instantly to prevent material waste and mechanical damage. This digital oversight guarantees unmatched twist consistency. It also reduces energy consumption and noise levels compared to legacy machines.
The D Series replaces manual processes with automated tension controls and exact speed synchronization. This ensures every meter of finished rope features uniform density and twist. Our digital precision removes the physical inconsistencies found in older gear-based systems. This empowers your facility to consistently meet strict international quality and tensile strength standards.
We engineered the D Series to accommodate a broad range of production capacities. Our models manufacture ropes ranging from Ø3 mm up to Ø40 mm. This lineup satisfies the diverse requirements of modern global producers. Below is an overview of key technical metrics across our standard models:
| Model | Item | Size range | Motor power | Output |
|---|---|---|---|---|

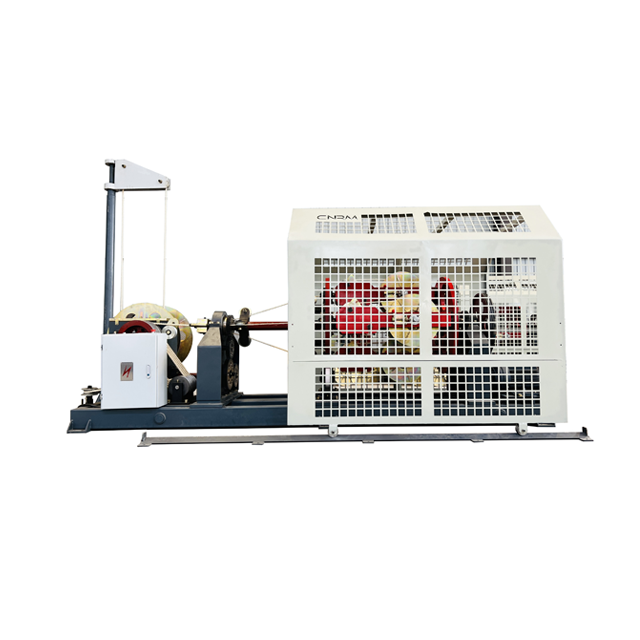

| HDTM-D1030 | Strander | Ø5 - 15mm | 3KW | 470-1200m/h |
| Rope machine | Ø10 - 30mm | 5.5KW | 145-340m/h | |

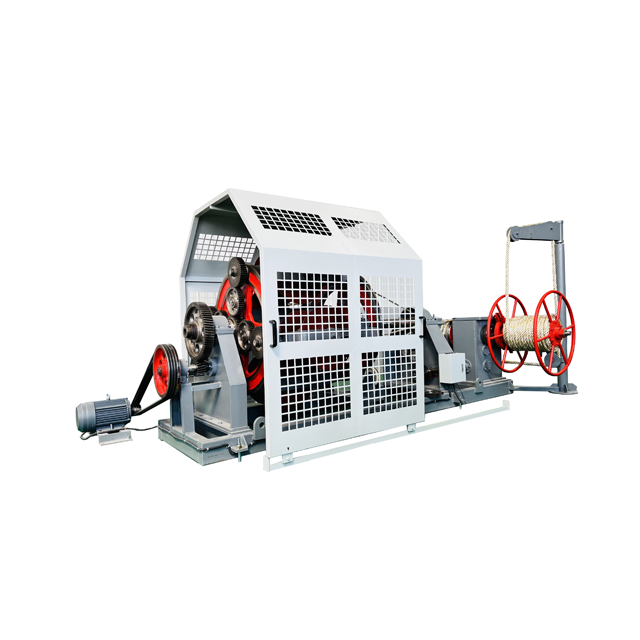

| HDTM-D2040 | Strander | Ø10 - 20mm | 5.5KW | 530-1056m/h |
| Rope machine | Ø20 - 40mm | 7.5 kW | 70-140m/h | |

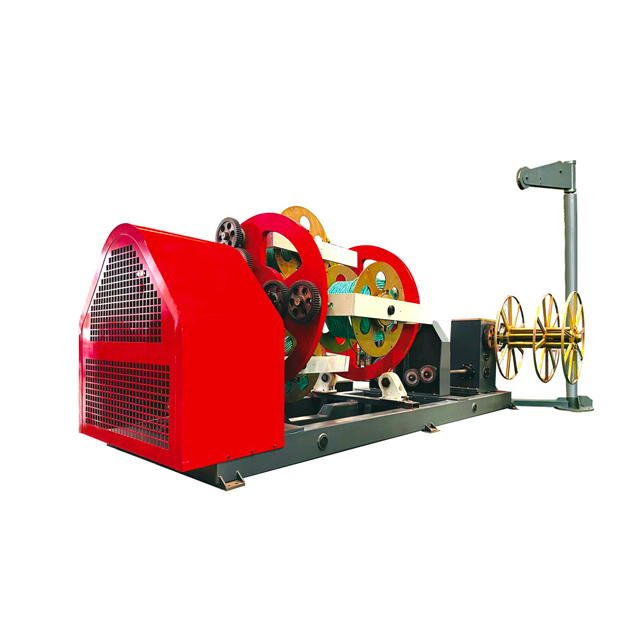

| HDTM-D3050 | Strander | Ø15 - 25mm | 5.5KW | 300-860m/h |
| Rope machine | Ø30 - 50mm | 11KW | 250-700m/h | |
| HDTM-D5075 | Strander | Ø25 - 38mm | 7.5 kW | 580-1056m/h |
| Rope machine | Ø50 - 75mm | 15KW | 312-672m/h |
These specifications highlight the mechanical robustness and versatility built into every unit. Selecting the correct model for your target diameters helps maintain peak efficiency. It also prevents unnecessary energy overheads during daily operations.
For businesses needing a comprehensive setup, we provide highly integrated turnkey rope production lines. We design end-to-end systems where the Intelligent Rope Making Machine D Series acts as the core engine. It is perfectly matched with essential auxiliary machinery. This unified approach eliminates compatibility issues and streamlines your factory workflow.
Our typical turnkey manufacturing workflow spans four primary phases:
Raw Material Processing: High-efficiency monofilament, danline, or raffia extruders transform raw polymers into high-tensile yarns.
Intermediate Twisting: High-speed ring twisters or yarn twisting machines prepare raw strands, optimizing baseline tensile strength.
Final Rope Layering: The D Series acts as the central hub, spinning pre-twisted strands into premium ropes.
Finished Product Packaging: Finished ropes are routed to dedicated winding machines for retail or industrial packaging.
We bring over 15 years of industry experience to manufacturing high-performance rope production equipment. As a certified national high-tech enterprise, we hold 15 invention patents and 27 utility patents. This reflects our dedication to constant mechanical innovation. Our modern facility exceeds 13,000 square meters, enabling us to manage large orders with rigorous quality control.
Our commitment to engineering excellence drives an extensive international footprint. We have exported over 200 turnkey projects to more than 50 countries. We truly understand the operational challenges faced by international buyers. Therefore, we construct our machinery using top-tier components and structured quality assessments. This guarantees years of reliable operation.
To ensure a smooth transition to active production, we offer comprehensive international support. Our engineering team assists during the planning phase. We provide customized advice on machinery selection, utility setups, and factory layouts. After equipment delivery, we dispatch experienced engineers to your facility. They handle on-site installation, commissioning, and hands-on operator training.
We stand behind our machinery with a robust warranty framework. Every unit includes a one-year main mechanical warranty. We also provide a half-year warranty on electronic components and 24-hour online technical service. If you are ready to upgrade your production facilities, please contact our technical support team.
As a trusted manufacturer of the Intelligent Rope Making Machine D Series, we are committed to optimizing your output. Request a customized rope machine quote today. You will receive detailed technical specifications and pricing tailored to your factory requirements.
Our equipment is highly versatile. It is compatible with synthetic fibers like PP monofilament, danline, raffia, nylon, polyester, and polyethylene. It also processes natural fibers like cotton, sisal, and jute effortlessly.
No, our machinery features advanced PLC and HMI touchscreen controls. This allows operators to adjust lay length and twist parameters digitally. It completely eliminates the need for physical change gears.
Yes, we provide comprehensive turnkey services. We dispatch experienced engineers overseas to handle on-site installation and machine commissioning. They also provide thorough technical training for your local operators.
Absolutely. We specialize in complete whole-line setups. Our team seamlessly connects extrusion lines, twisting machines, and winding equipment directly with the D Series rope maker for continuous production.
