CNRM Intelligent Rope Making Machine W Series: Next-Generation Production
The Intelligent Rope Making Machine W Series engineered by CNRM Tech Co., Ltd. represents the pinnacle of modern rope production. We designed it to streamline the manufacturing of high-quality 3-strand and 4-strand twisted ropes. By integrating the advanced two-for-one twisting principle, our highly efficient machinery achieves complete stranding, closing, and coiling in one continuous operation. This innovative single-pass process drastically reduces handling times and labor costs. It also lowers floor space requirements, offering an optimized layout for modern production facilities.
We engineered the W Series for maximum material adaptability. It is fully compatible with a wide array of synthetic and natural fibers. Your production line can process PP monofilament, Danline, raffia yarn, nylon, and polyester. It also handles natural fibers like sisal and jute with consistent performance. Our machines accommodate rope diameters ranging from ø3mm to ø40mm. This provides a versatile, robust platform for global manufacturers producing everything from commercial utility cords to heavy-duty maritime hawsers.
Advanced Automation in the Intelligent Rope Making Machine W Series
To meet modern smart manufacturing demands, our Intelligent Rope Making Machine W Series incorporates state-of-the-art PLC automation. Centralized management occurs through a user-friendly HMI touchscreen control panel. This allows operators to easily input operational parameters. Automated lay length adjustments require minimal manual intervention. Our digital control ensures that rope density, pitch, and twists-per-meter remain highly precise throughout the entire production cycle.
Beyond simple configuration, our intelligent control system features automated tension synchronization across all flyers and take-up spools. This real-time tension management dynamically adjusts spool rotational speeds. It prevents fiber breakage, reduces friction, and maintains structural uniformity. Additionally, an integrated smart diagnostics system monitors machine health and tracks production logs. It reports active diagnostic alerts on the HMI screen, minimizing unexpected downtime and ensuring operational safety.
W Series Models and Specifications
The W Series features distinct models optimized for specific diameter ranges, output targets, and factory layouts. Selecting the correct configuration helps your factory optimize energy consumption and maximize material throughput. This ensures you achieve the exact tensile strength required for your target markets.

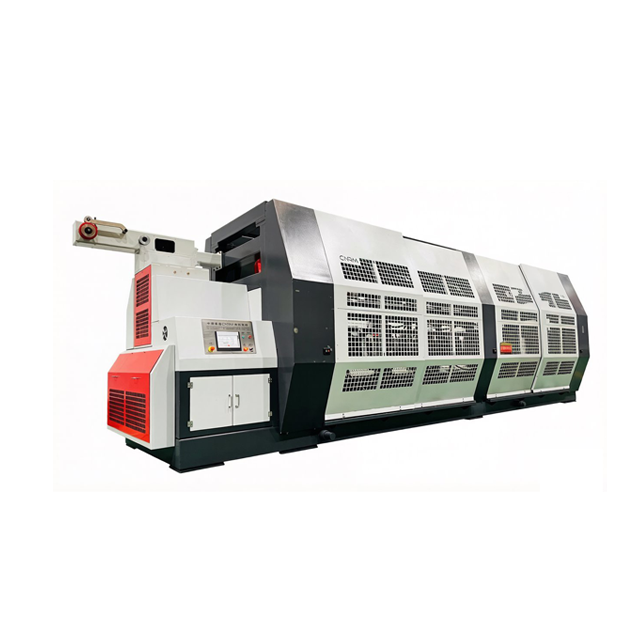

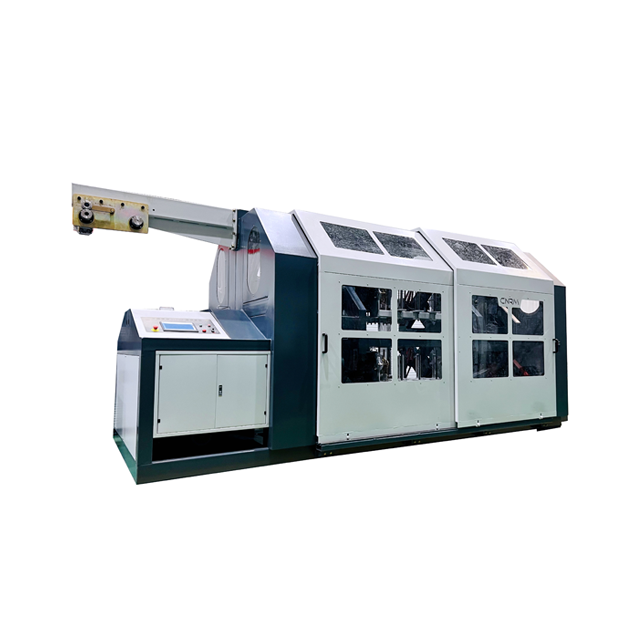

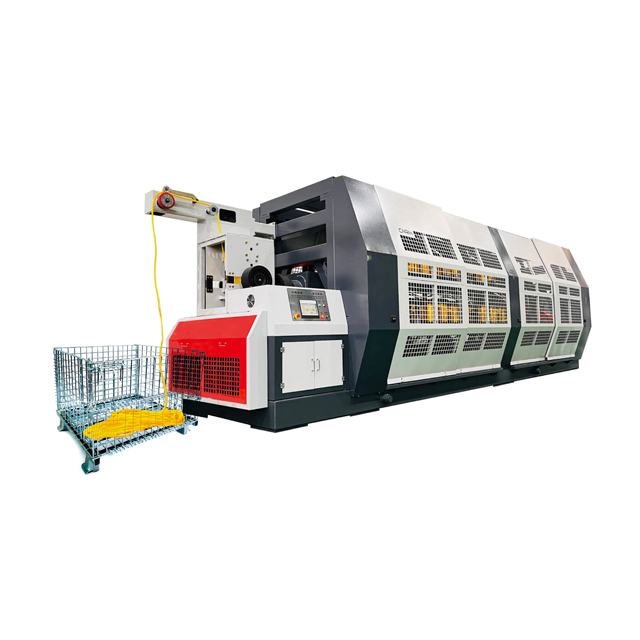

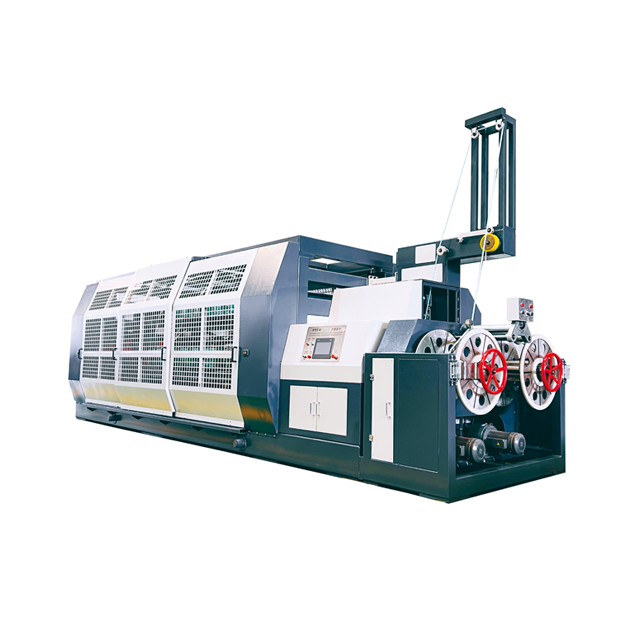

| Item |
HDTM-M33W |
HDTM-M44W |
HDTM-M55W |
HDTM-M66W |
| Rope range |
Ø3-10mm |
Ø6-14mm |
Ø12-20mm |
Ø18-26mm |
| Lay range |
15-38mm |
20-50mm |
32-78mm |
40-105mm |
CNRM W-6 Intelligent Rope Making Machine (ø3mm to ø6mm)
The CNRM W-6 is our ideal solution for manufacturing high-speed, small-diameter ropes and specialized twines. Designed with high flyer RPM capabilities, this lightweight model delivers rapid output rates. It is perfect for commercial packaging and agricultural baling applications. Its compact footprint fits seamlessly into production facilities with limited floor space.
CNRM W-20 High-Speed Twisted Rope Machine (ø8mm to ø20mm)
Serving as the heavy-duty workhorse of the mid-range industry, the CNRM W-20 handles standard industrial rope diameters. Equipped with balanced motor capacity and robust vibration dampening, it is highly favored by marine manufacturers. Advanced tension synchronization ensures multiple strands wind together under uniform tension, producing perfectly balanced ropes.
CNRM W-40 Heavy-Duty Rope Making Equipment (ø22mm to ø40mm)
For large-scale industrial applications and maritime mooring, the CNRM W-40 offers massive spool capacities. We engineered it to handle high-tensile synthetic fibers and thick natural materials. This machine features reinforced structural steel frames to manage high-torque twisting forces. Complete structural safety automation and electronic interlocks protect operators during continuous runs.
Complete Turn-Key Solutions from Your Manufacturer
CNRM Tech Co., Ltd. is not merely an equipment supplier; we are your comprehensive turn-key project partner. We work closely with global clients to design entire production facilities from the ground up. We factor in factory floor plans, output targets, and power infrastructure. Our equipment ecosystem spans the entire processing pipeline, from raw plastic resin to the packed rope product.
This includes high-performance extrusion lines, high-speed ring twisters, and professional winding equipment. As a national high-tech enterprise backed by 15 invention patents, we pride ourselves on engineering excellence. Our extensive global export experience includes over 200 successful projects spanning 50+ countries. We manage the entire manufacturing process in-house to guarantee strict international quality standards.
Applications for the Intelligent Rope Making Machine W Series
The material flexibility of our Intelligent Rope Making Machine W Series makes it indispensable across multiple global industries. Here is how different sectors utilize our ropes:
Marine & Fisheries: High-strength, water-resistant ropes made from Danline and nylon for fishing nets and vessel docking.
Agriculture & Baling: UV-stabilized split-film and raffia ropes used for crop support and automatic baling machines.
Logistics & Transport: Lightweight, high-tenacity twines ideal for cargo securing and package binding.
Heavy Construction: Thick-diameter, multi-strand twisted synthetic ropes engineered for hoisting and safety rigging.
Global Support, Warranty, and After-Sales Service
Purchasing industrial equipment requires dependable long-term technical support to protect your capital investment. Every machine comes with a comprehensive warranty. We provide a 1-year warranty on the main unit and a half-year warranty on electronic components. Our global network also provides 24-hour online technical assistance for fast troubleshooting and spare parts dispatch.
To ensure a smooth transition to full-scale production, we dispatch experienced overseas engineers directly to your facility. Our technical team handles on-site assembly, precision commissioning, and multilingual operator training. We cover routine maintenance and advanced PLC programming. Ready to scale your production? As a leading Intelligent Rope Making Machine W Series manufacturer, we invite you to contact our technical sales specialists today for a customized quotation.
Frequently Asked Questions (FAQ)
What raw materials can be processed on the Intelligent Rope Making Machine W Series?
Our W Series is highly versatile. It is fully compatible with PP/PE monofilaments, Danline, raffia yarn, split-film, nylon, and polyester. It also reliably processes natural fibers like cotton, sisal, and jute.
How does the continuous operation feature benefit my factory?
By combining stranding, closing, and coiling into a single automatic process, our machinery eliminates secondary material handling. This significantly reduces labor requirements, optimizes floor space, and minimizes raw material waste.
What is included in CNRM's turn-key rope production planning?
We provide custom plant layouts tailored to your specific factory size and target outputs. This encompasses everything from raw material extrusion lines to final packing equipment.
Does CNRM provide international installation and operator training?
Yes. We actively dispatch professional overseas engineers to your factory for on-site machine installation and system commissioning. We also provide comprehensive multilingual training for your local operators.
