The HDTM-M55T series intelligent twisting machine represents a breakthrough in high-capacity rope manufacturing technology. Built with a robust framework utilizing a new type of strong round steel, this equipment ensures absolute structural integrity even under continuous, high-intensity operational loads. The tactile feel of the electroplated metal doors and the seamless, low-noise hum of the advanced three-phase asynchronous motors immediately convey a sense of industrial supremacy. By integrating premium Harbin Industrial bearings with precision-engineered synchronous belt chains, mechanical friction is drastically reduced, allowing the machinery to operate smoothly without disruptive vibrations. This meticulous craftsmanship translates directly into an extended service life and a significantly lowered maintenance rate for your production facility. Every component, from the quenched bearing chain wheels to the Siemens inverter, has been carefully selected to guarantee that your manufacturing process remains uninterrupted, producing perfectly twisted ropes that meet the most stringent quality standards in the market.
Specification Item | Parameter Details |
|---|---|
Product Name | High Speed Three-Motor Rope Making Machine |
Model | CNRM HDTM-M55T |
Applicable Rope Diameter Range | 12mm - 20mm |
Rope Structure | Three and four-ply structure |
Applicable Raw Materials | HDPE, PP, PET, Sisal, Cotton yarns |
Maximum Operation Speed | 900 rpm - 1000 rpm |
Control System | HMI + PLC System |
Inverter Brand | Famous Germany Brand-Siemens |
Main Motor | Advanced domestic three-phase asynchronous motors |
Bearing Brand | Harbin Industrial top bearings |
Body Material | New type of strong round steel |
Transmission Method | Synchronous belt chains |
Lay Length Setting | Set Lay Length Electronically |
Winding Method | Synchronous winding |
Meter Device | Digital intelligent meter device |
Yarn Break Protection | Application automatic stop after yarn broken system |
Safety Protection | Laser cutting technology safety doors and electromagnetic sensor doors |
Surface Treatment Technology | Metal doors and accessories surface using electroplating; Bearing chain wheel metal tempering processing technology and quenching treatment |
Maximizing facility output while minimizing operational bottlenecks requires equipment that is both robust and highly adaptable. This twisting machine is engineered to deliver exceptional performance metrics, ensuring that your production lines run smoothly and efficiently.
High-speed operation capabilities translate directly into corresponding high output, allowing your facility to meet large volume demands without extending operational hours or increasing labor overhead.
The integration of HMI and PLC systems perfectly matches and coordinates the motors, controllers, and inverters, achieving stable power output under varying and demanding production requirements.
Setting the lay length electronically eliminates manual guesswork, ensuring absolute consistency and structural integrity across thousands of meters of produced cordage.
Synchronous winding guarantees that the final product is spooled tightly and uniformly, preventing tangles, optimizing packaging space, and enhancing the visual appeal of the final product.
Characterized by low noise emissions and a remarkably low maintenance rate, this equipment creates a superior, less fatiguing operational environment for floor workers while keeping downtime to an absolute minimum.
Achieving a rapid return on investment is a primary objective for any large-scale manufacturing facility. This equipment is designed to dramatically accelerate your production timelines while keeping overhead costs strictly controlled.
Reaching peak speeds of 900 rpm to 1000 rpm, this machinery significantly outpaces conventional twisting equipment, ensuring continuous, high-volume output to meet tight delivery schedules.
Specifically calibrated for the 12-20mm range, guaranteeing that within this crucial size bracket, the machine delivers maximum yield without compromising the structural integrity of the rope.
The advanced three-motor drive system provides relentless, stable power, preventing the micro-stutters that typically cause defects in high-speed manufacturing environments.
By combining synchronous winding with rapid output, the unit cost per meter of rope is drastically reduced, directly enhancing your overall market competitiveness and profit margins.
Adaptability to varying market demands is essential. This intelligent twisting machine offers unparalleled versatility, allowing you to seamlessly transition between different raw materials and structural requirements without requiring entirely new setups.
Perfectly compatible with plastic fibers like HDPE, PP, and PET, as well as natural materials such as Sisal and Cotton yarns, giving you the flexibility to serve diverse industry sectors.
Effortlessly switch between three-ply and four-ply rope structures to meet specific tensile strength requirements and exact client specifications without complex mechanical retooling.
The electronic lay length setting ensures that every single batch of 12-20mm rope maintains exact dimensional accuracy, providing a uniform visual appeal that premium buyers demand.
Modernizing the factory floor means reducing reliance on manual intervention. This equipment integrates cutting-edge automation to streamline operations, making it incredibly user-friendly even for operators with minimal technical background.
Utilizing the famous Germany brand Siemens for the inverter ensures flawless power regulation, unparalleled electrical reliability, and protection against power surges.
The touch screen and logic controller combination allows operators to monitor, adjust, and optimize the entire production cycle with a few simple taps, drastically reducing the learning curve.
Accurately tracks production lengths in real-time, eliminating manual measuring errors and ensuring exact spooling quantities for precise inventory management.
The application automatic stop after yarn broken system instantly halts operation if a thread snaps, preventing massive material tangles and reducing scrap rates to near zero.
Capital equipment must withstand the test of time and relentless operational cycles. Every structural element of this twisting machine has been engineered for maximum resilience and long-term longevity.
Constructed from a new type of strong round steel, the machine body provides an unshakeable foundation that absorbs vibrations and maintains precise alignment over years of heavy use.
Equipped with top-tier Harbin Industrial bearings, ensuring frictionless rotation and drastically reducing the wear and tear on critical moving parts.
The bearing chain wheels undergo rigorous metal tempering processing and quenching treatments, hardening them against the immense physical stresses of high-speed twisting.
Metal doors and external accessories feature premium electroplating, protecting the machinery from environmental degradation and maintaining a pristine, professional appearance.
Protecting your workforce is paramount, especially when operating machinery at speeds up to 1000 rpm. This equipment incorporates uncompromising safety protocols to ensure total factory compliance and operator security.
The safety enclosures are manufactured using advanced laser cutting technology, ensuring a perfect, gap-free fit that completely isolates the high-speed moving components from your operators.
Equipped with highly responsive electromagnetic sensor doors that instantly detect unauthorized access or accidental openings, immediately cutting power to prevent severe injuries.
The synchronous belt chains are fully shielded, eliminating entanglement hazards while simultaneously reducing the overall acoustic footprint of the machine.
Procuring heavy machinery internationally requires absolute confidence in the supplier's post-purchase support. We provide a comprehensive, globally accessible technical backing system to ensure your investment yields immediate, uninterrupted results.
Our experienced overseas after-sales engineers will travel directly to your facility to handle the complete installation and test run, ensuring the equipment operates flawlessly in your specific factory environment.
We conduct centralized, intensive training sessions for your employees, focusing heavily on guiding technical operations and enforcing critical factory safety precautions.
Every machine is accompanied by exhaustive operation manuals and clear, step-by-step instructional videos to serve as permanent, easily accessible reference materials for your team.
Selecting the right manufacturing partner is just as critical as choosing the right equipment. We stand out in the industrial machinery sector by delivering not just a product, but a complete, optimized manufacturing solution tailored to your operational goals.
By sourcing directly from our state-of-the-art facilities, you bypass intermediaries, ensuring you receive premium, industrial-grade equipment at highly competitive price points.
Every machine undergoes rigorous testing phases before shipment, guaranteeing that the electrical components, motors, and structural elements perform exactly to specification upon arrival.
We understand that every production line is unique. We offer the flexibility to provide different brands of motors and specific component adjustments based entirely on your exact operational requirements.
Our machinery powers production floors worldwide. We have built a reputation for unyielding reliability, rapid response times, and an unwavering commitment to our clients' long-term success.
To assist your procurement team in making an informed decision, we have compiled detailed answers to the most common technical and operational inquiries regarding our intelligent twisting equipment.
1. What specific materials are utilized in the construction of this rope making machine?
We utilize a new type of strong round steel material for the main body, which is critical for ensuring absolute stability, extending the operational lifespan, and guaranteeing smooth performance. Furthermore, we integrate first-class domestic motors and premium electrical components to ensure flawless, continuous operation. We can also provide different brands of motors according to specific customer requirements.
2. Does the manufacturer provide comprehensive overseas after-sales service?
Yes, we maintain a highly reliable and responsive after-sales team. For many years, we have been dispatching expert engineers overseas to install machinery directly in our clients' factories. They also provide thorough training to guide your staff on how to operate the equipment fluently and safely.
3. Is it possible to use a single machine to manufacture all sizes of rope?

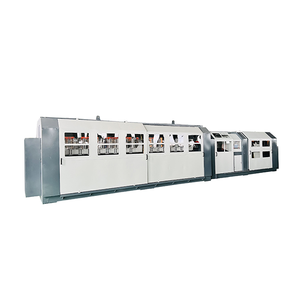

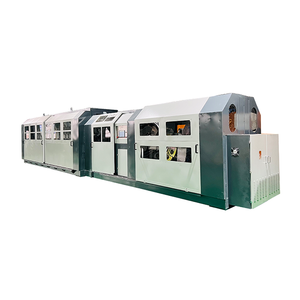

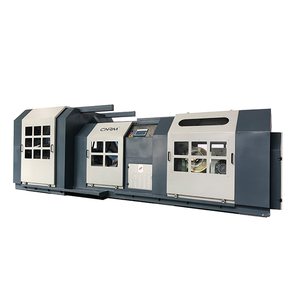

No, each machine model is engineered with a specific optimal working range to ensure the highest quality output. For instance, the HDTM-M55T is specifically designed for 12-20mm ropes. We also offer the M33T for 4-10mm, M44T for 6-14mm, M66T for 18-26mm, and M77T for 22-32mm. Specifying your target diameter allows us to recommend the perfect equipment for your needs.
4. How does the machine handle potential thread breakages during high-speed operation?
The equipment is fitted with a highly sensitive application automatic stop system. If a yarn breaks during the twisting process, the sensors detect the loss of tension and instantly halt the machine, preventing material waste and protecting the internal mechanisms from tangling.
5. How is the lay length of the rope controlled and adjusted?
Unlike older mechanical models that require manual gear changes, our HDTM-M55T allows operators to set the lay length electronically via the HMI touch screen. This integration with the PLC system ensures rapid adjustments and exact precision for every single production batch.
