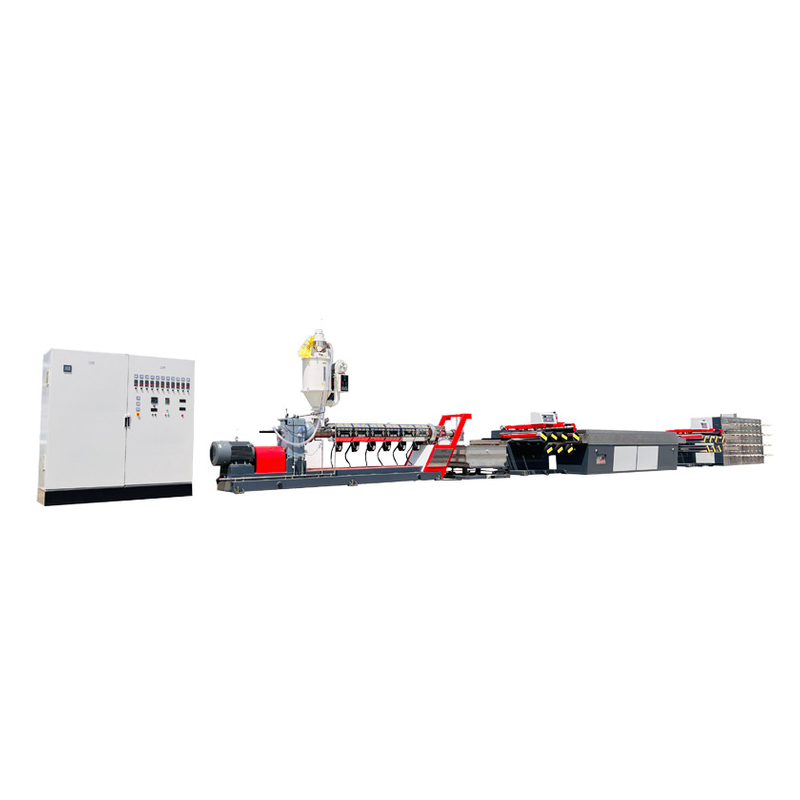

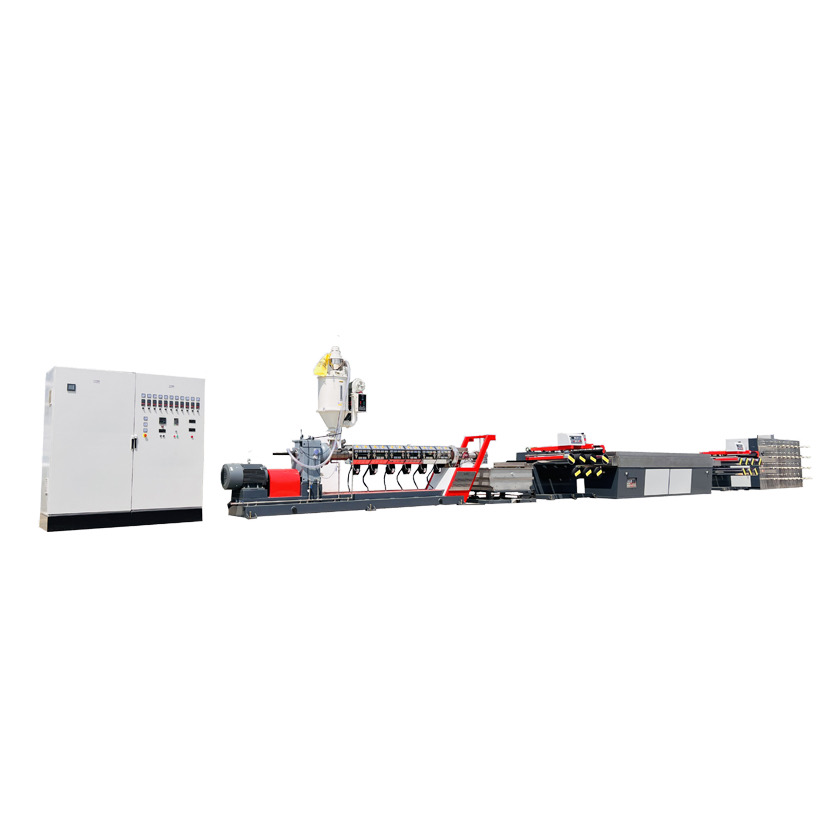

PP Monofilament Extruder
Technical data
Item | HDYSJ-70*33 | HDYSJ-80*33 | HDYSJ-90*33 |
Screw Diameter | 70mm | 80mm | 90mm |
Fiber Diameter | 0.13-0.35mm | 0.13-0.35mm | 0.13-0.35mm |
Fiber Type | PP/PE/HDPE Monofilament Yarn For Making Rope or Net |
Ratio of L/D | 33 | 33 | 33 |
Rotation Speed of Screw | 20-90r/min | 20-90r/min | 20-90r/min |
Drawing Ratio | 4-10 | 4-10 | 4-10 |
Cooling Mode | Water Cooling | Water Cooling | Water Cooling |
Power Consumption | 100KW/65KW | 130KW/80KW | 150KW/100KW |
Max Output capacity | 1200KG/24H | 2000KG/24H | 3000KG/24H |
Machine Weight | 13 Tons | 15 Tons | 18 Tons |
Machine Dimension(L*W*H) | 20*3*2.5M | 23*3*2.5M | 27*3*2.5M |
Performance & Advantages:
· Screw and barrel are made of nitride steel 38CrMoAl with special hardening, has good corrosion resistance and wear resistance, longer life.
· AC Inverter & Motor can synchronize the entire extruder.
· Latest technology used for force the melt into the die very effectively.
· Take up small area.
· Easy operation.
· High output capacity.
