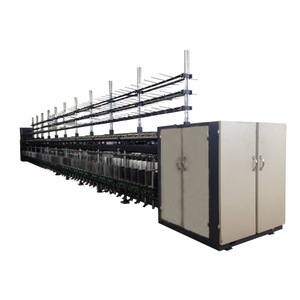

HDRT-727
Technical data
Model | HDRT-727 |
Quantity of Spindle | 10 spindles/group. max.100 spindles |
Lifting movement of traveler ring | 205 mm |
Speed of Spindle | 2400-4000 rpm |
Dia of roller | 51 mm |
Distance of Spindle | 224 mm |
Dia of Traveler Ring | 150 mm |
Twisting Direction | Z or S |
Suitable scope | · 21 counts 5 strands~60 strands yarn · 2000D~6000 D fiber 36 tex 6~36 strands PE Twisting or twine |
The product has wide application scopes, modern design, big take-up amount, high speed. It is easy to operate and maintain, low noise and power consumption. It's a high efficiency and output machine with twisting and stranding. It has the mechanism with planetary direction exchanging ,stranding and twisting of the twine can be finished in one time. It's suitable for primary twisting and re-twisting of all kinds of PE twine, PP twine, PET twine, nylon twine, cotton twine and twisted ropes in small size.
Performance & Advantages
· Wide applied scope
· AC Invertor & Motor
· Big winding capacity
· Longer life for spare part
· Strong suitability for material
· Lifting mechanism with planetary
· Anti-converting turning device for roller
· Mechanism of twisting direction changing
· Two procedure of twine can be finished in one time
