CNRM HDTM Rope Machine
CNRM HDTM combined strander and rope-layer
For production of finished coiled rope from natural and synthetic fiber yarns
Three-strand and four-strand models
From start to finish in one continuous operation
Extremely high output
Performance & advantages
· High productivity
· Sprocket drive
· Rigid construction
· Direct coiling head winding
· With digital length counter meter
· Auto stop after yarn breakage to control wastage
· Door sensor, protective door with steel wire mesh
· Low noise level, Low maintenance, easy operation system
· Surface of parts are bluing and with plating treatment
· Thermal refining for shaft parts, quenching treatment for gear and sprocket wheel

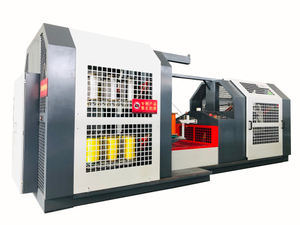

CNRM HDTM-M66
Technical data
Rope range: | Φ18-26mm | |
Lay range: | 40-105mm | |
Rope lay: | S or Z | |
Take-up, coiling head: | Φ740mm, traverse 430mm,barrel Φ150mm | |
Take-up, max. Weight: | Polypropylene 70kg | |
Pay-off packages | M66-3 | M66-4 |
3x46 , max.Φ175X300mm traverse | 4X46,max.Φ175X300 mm traverse | |
3x36 , max.Φ225X300mm traverse | 4X36,max.Φ225X300 mm traverse | |
Take-up capacity | Production capacity | |||
Coiling head | Output(kgs/24hour) | |||
Φ18mm | 470m | Φ18mm | 4911kgs | |
Φ20mm | 420m | Φ20mm | 6737kgs | |
Φ22mm | 350m | Φ22mm | 8970kgs | |
Φ24mm | 300m | Φ24mm | 11638kgs | |
Φ26mm | 250m | Φ26mm | 14794kgs | |
Examples based on three -strand polypropylene rope. Lay length: medium. Efficiency rate: 100%. 24 hour’s production
Motor-power: 1x 22kw AC HDTM-66-46/3 weight: 10,000kg HDTM-66-46/4 weight: 11,000kg Height:2.15 m
